WAVE COMPENSATOR TEST BENCH

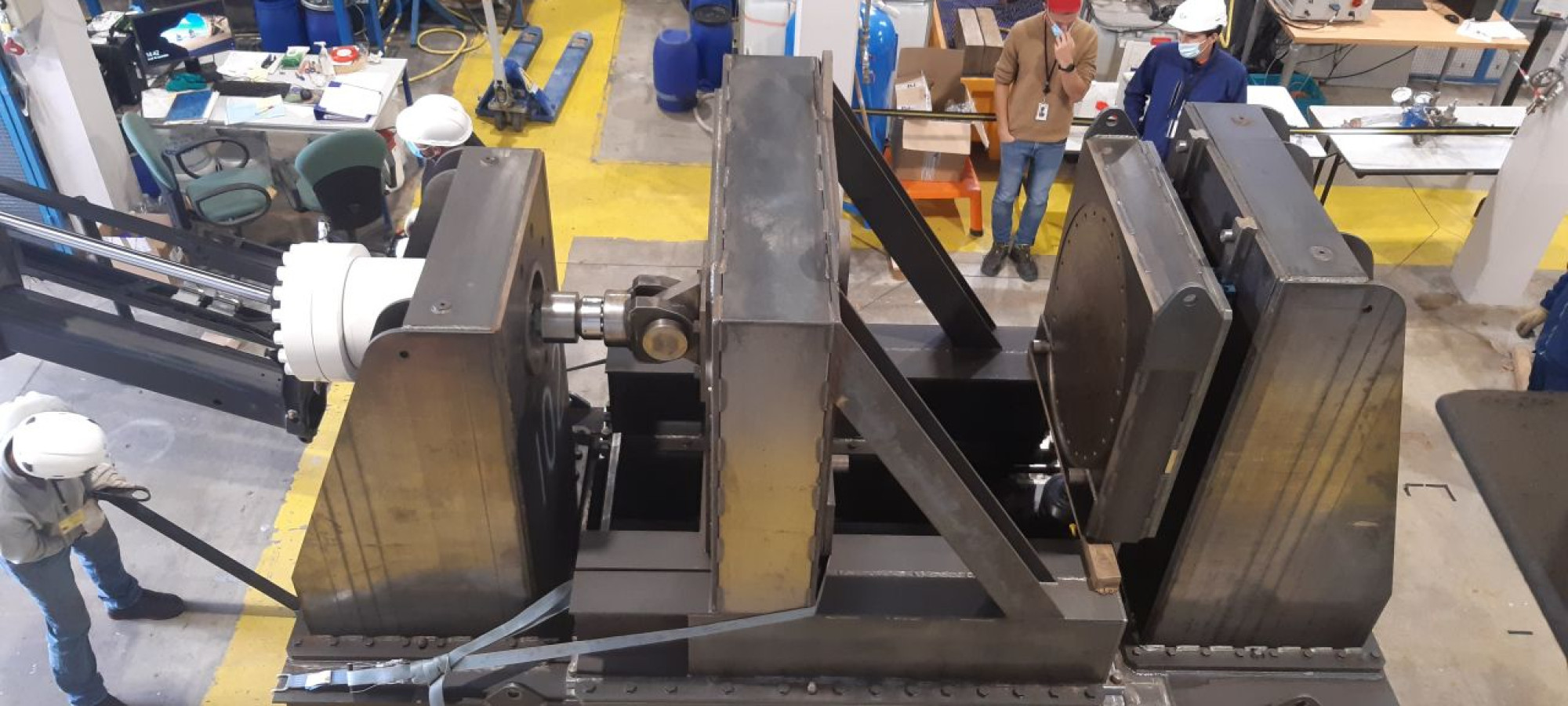

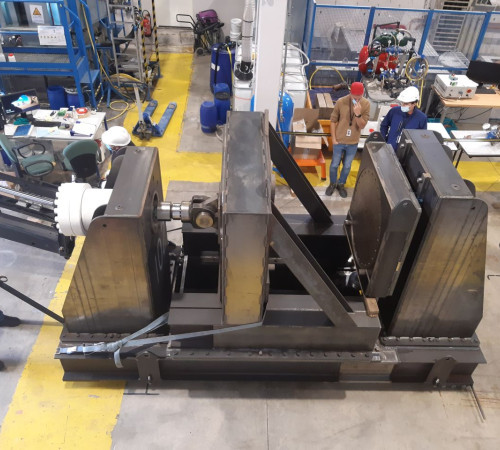

This test bench is a mechanically welded frame designed to perform a series of mechanical tests on wave compensators as part of a maintenance program.
WAVE COMPENSATOR TEST BENCH
The mission's challenge
Completion of the project in record time.
Specificity
Technical characteristics
| Dimensions | 4010 x 1700 x 2400 mm |
| Weight | 8550 kg |
| Compression effort | 250 kN |
| Shear effort | 1500 kN |
Operational characteristics
The maximum displacements required on the CAO are approximately 60 mm in shear and 30 mm in compression.
Two screw jacks are mounted on the frame and apply compression and shear forces simultaneously.
Delivery times
This project was delivered in four months, via the following stages:
- Project management

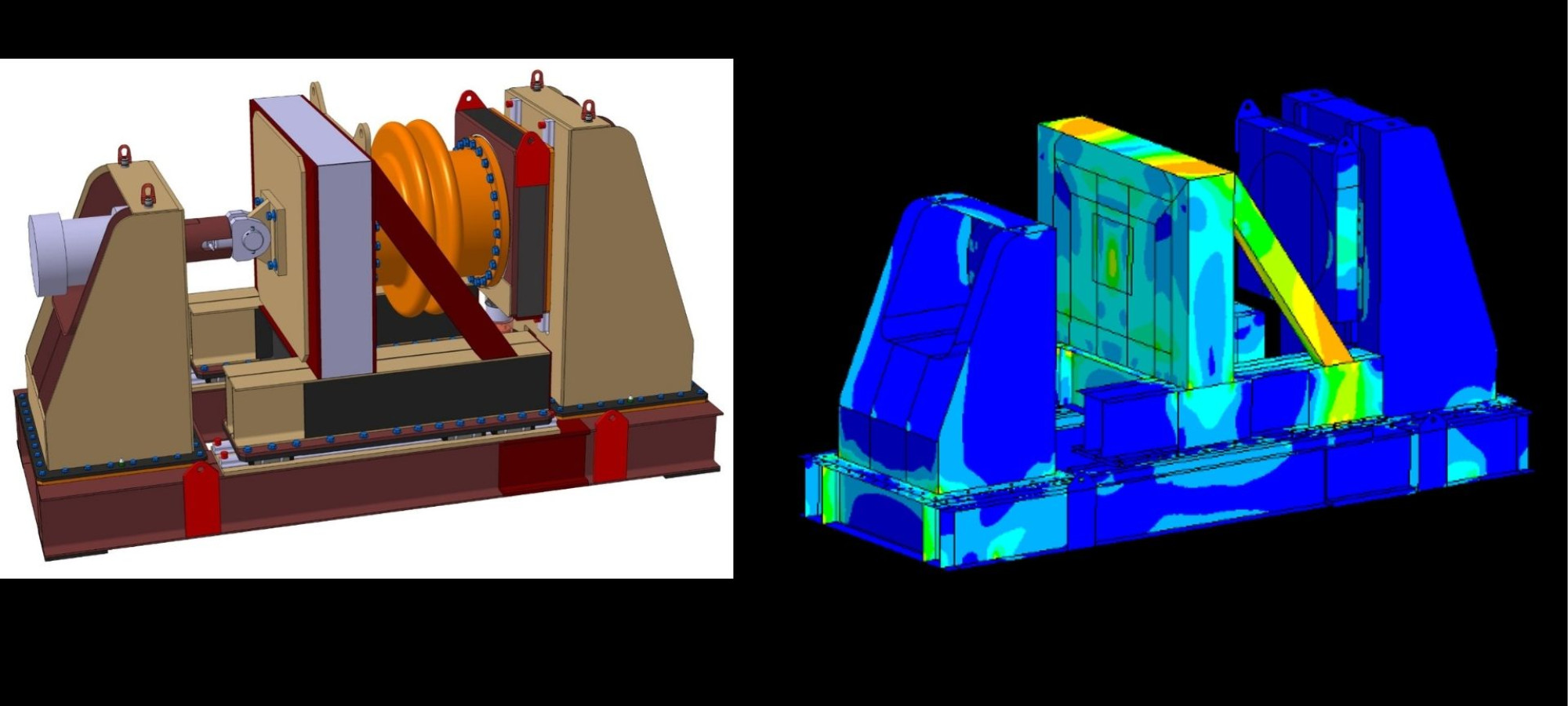

- Mechanical studies and analyses
- Manufacturing
- Qualification tests
Certifications
This equipment complies with European standards 2006/42/EC.
