CLAMP BAND©

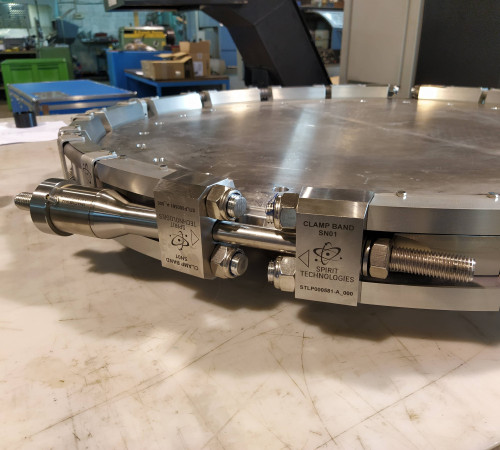

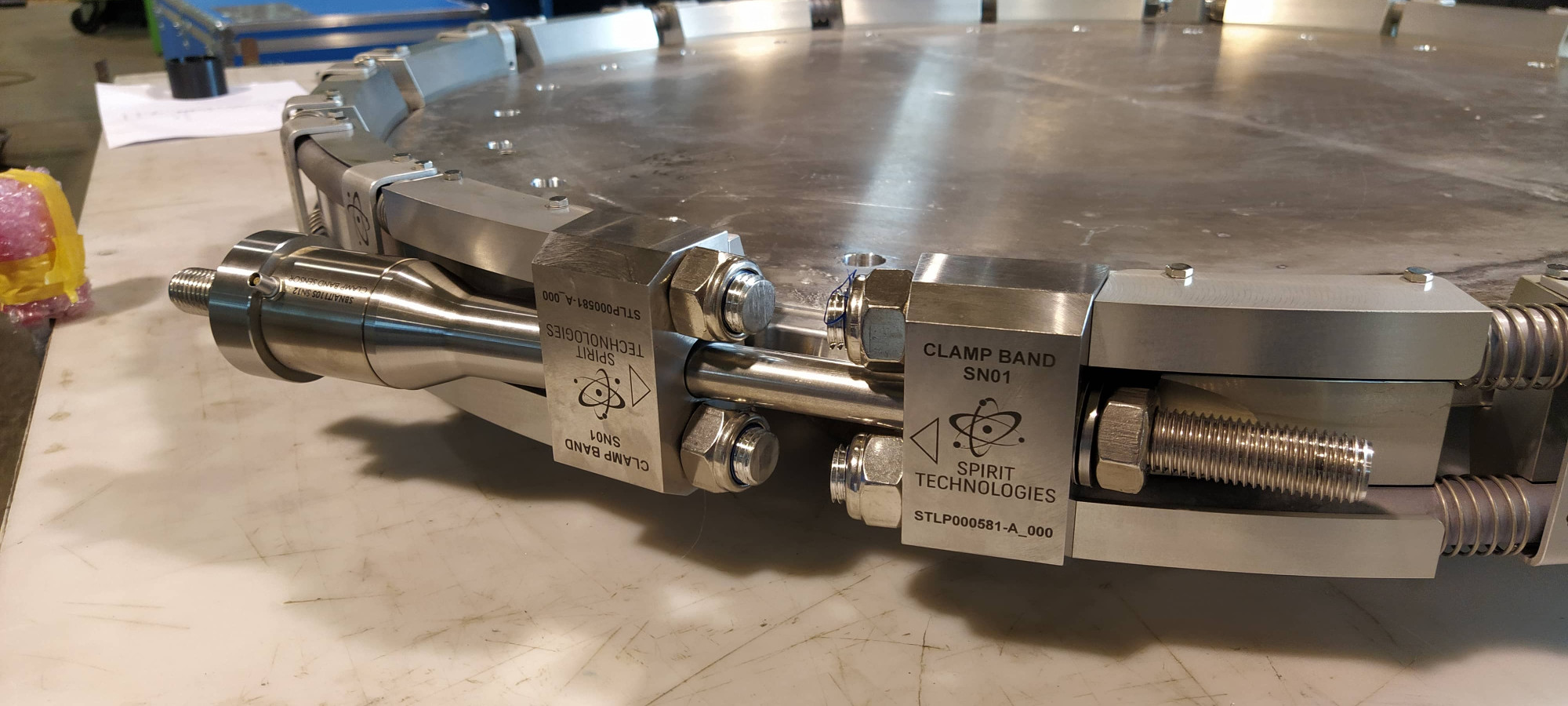

The CLAMP BAND© is used for holding the spacecraft to its launcher interface during handling, vibration and thermal tests. Different dimensions have been developed for S/C Ø940, Ø1200, Ø1600.
CLAMP BAND©
The mission's challenge
To obtain an evenly distributed tension has been the main challenge.
Specificity
This product is a patented Spirit Technologies design.Technical characteristics
Ø 945 | Ø 1200 | Ø 1600 | |
| Dimension | Ø1050 H85 | Ø1300 H90 | Ø1750 H90 |
| Mass | 35 kg | 38 kg | 40 kg |
| Environment | ISO 8 | ||
| Operation | Ambiant, thermal, vacuum | ||
| Justification tightening | 45,000 N | 60,000 N | 60,000 N |
Operational characteristics

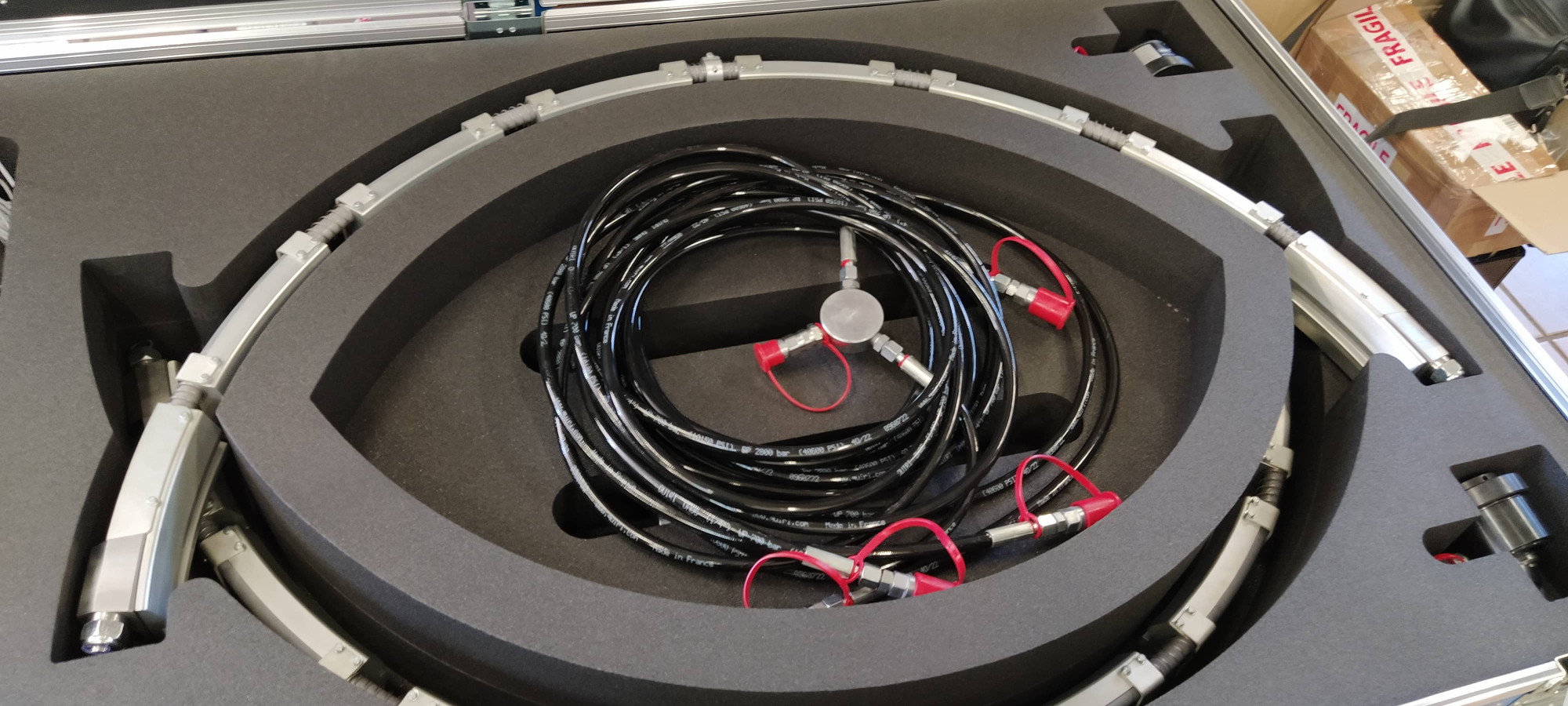

The CLAMP BAND© is equipped with an annular force sensor to provide the applied tension.
It takes 10 minutes to reach the full tension with hydraulic tensioners.
- Hydraulic tensioners
- Manual hydraulic pump
- Force sensors
- Force reader
Delivery times
Total cycle time for this project: 6 months, via different steps:
- Mechanical design and analysis
- Manufacture of control tools
- Production
- Qualification testing
Certifications
This equipment complies with European Standard 2006/42/EC and is tested at 2 SWL by an accredited body.
