HV TROLLEY

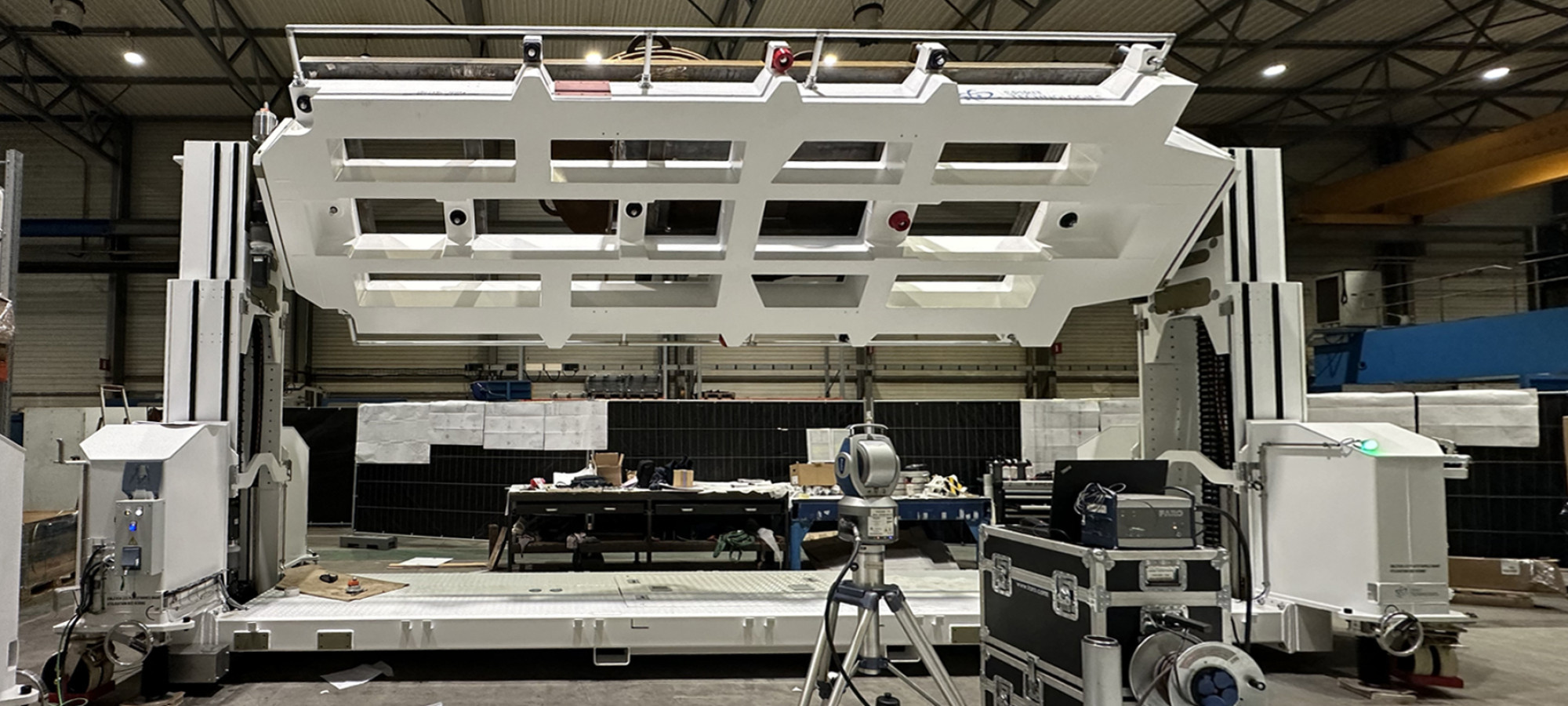

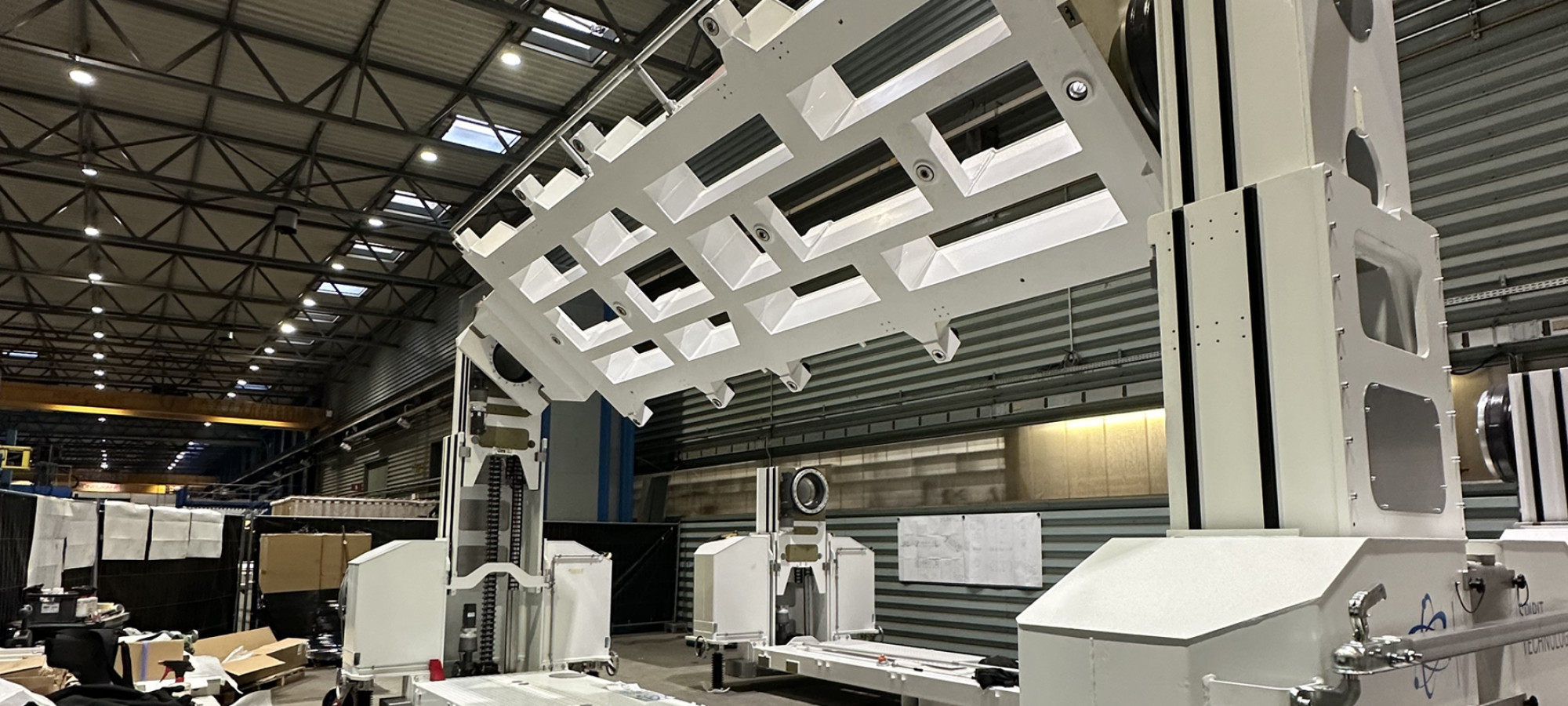

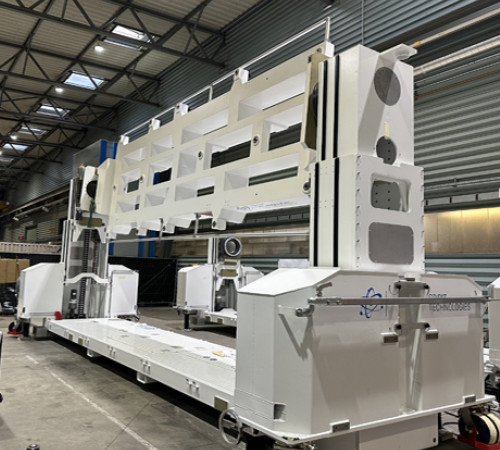

The HV Trolley allows handling and rotating a panel during the space craft platform integration phases in cleanroom environment.
HV TROLLEY
The mission's challenge
The compactness requested by the customer environment has been an exciting challenge.
Specificity
The lifting function is performed by a telescopic system.Technical characteristics
| Dimensions | 8100mm | 2664mm | 1610mm |
| Mass | 7800 kg | ||
| SWL | 3.8 t | ||
| Environment | ISO 8 | ||
| Temperature | 22° +/-3°C | ||
| Power Supply | 380V 5P / 32A European electrical network | ||
Operational characteristics
THE MGSE CONSISTS OF:
- A rotating cradle
- An integration frame
- A trolley capable of rolling, raising, lowering and rotating the cradle equipped with wheels for rolling in cleanrooms
- Jacks to immobilise the trolley during operations
MOTIONS:
- Elevation 1950mm
- Rotation +/- 180°
HUMAN MACHINE INTERFACE
- Control Panel Display (Positions, Angles, Commands)
- Safety redundancies
EQUIPMENT
- 4 double wheels with 4 height adjustable screw jacks
- Tarpaulin, handling accessories
Delivery times
The total delivery was performed in less than a year, via different steps:
- Mechanical design and analysis
- Manufacture of control tools
- Production
- Qualification testing
Certifications
This equipment complies with European Directive 2006/42/EC and is tested at 1.5 SWL.
